Engineered Pumping Solutions You Can Trust
Precision-built pumps for tough applications-rotary gear pumps, mud pumps, and triplex plunger pumps delivered globally.
About EXCEL PUMPS
Excel Pumps Private Limited supplies reliable industrial pumping solutions for facilities that can’t afford downtime. We help customers select, size, and integrate the right pump systems for water, chemicals, slurry, oils, and process fluids-balancing performance, energy efficiency, and total cost of ownership. From rugged centrifugal pumps to heavy-duty positive displacement units, our team supports projects from specification to commissioning. With responsive technical guidance and a focus on long service life, Excel Pumps Private Limited keeps production moving and maintenance predictable across manufacturing, utilities, and processing environments.
Keep Your Process Flowing
Get the right pump, the right fit, and the right support-fast.
Performance

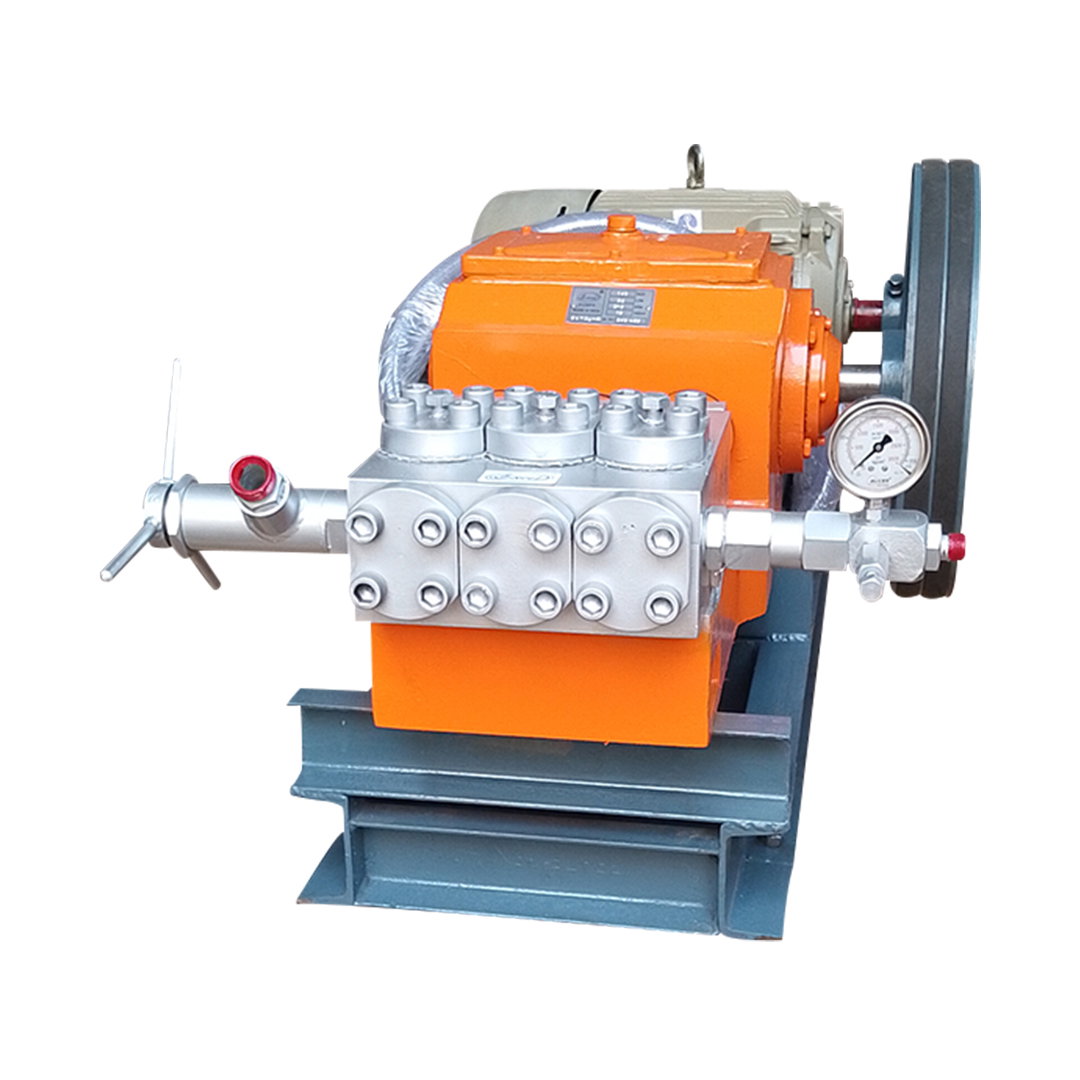

PERFORMANCE TRIPLEX PLUNGER PUMPS ET-20
| TRIPLEX PLUNGER PUMPS - Stroke Length: 20 mm | ||||||||||
| PUMP MODEL | Plunger | P Max | Q Max | Pump Speed | Power at Max. Speed | |||||
| Diameter | Kg/Cm2 | PSI | LPM | IMP GPM | US GPM | M3/HR | Motor HP | BkW | ||
| ET-20-30 | 30 | 15 | 213 | 21.6 | 5.7 | 4.8 | 1.3 | 600 | 1 | 0.71 |
| ET-20-20 | 20 | 40 | 568 | 12.0 | 3.2 | 2.7 | 0.7 | 750 | 1.5 | 1.05 |
| ET-20-20 | 20 | 30 | 426 | 23.2 | 6.1 | 5.2 | 1.4 | 1450 | 2 | 1.52 |
| ET-20-30 | 30 | 30 | 426 | 21.6 | 5.7 | 4.8 | 1.3 | 600 | 2 | 1.41 |
| ET-20-15 | 15 | 100 | 1420 | 6.8 | 1.8 | 1.5 | 0.4 | 750 | 2 | 1.48 |
| ET-20-25 | 25 | 40 | 568 | 18.2 | 4.8 | 4.0 | 1.1 | 750 | 3 | 1.59 |
| ET-20-25 | 25 | 50 | 710 | 19.8 | 5.2 | 4.4 | 1.2 | 750 | 3 | 2.16 |
| ET-20-22 | 22 | 30 | 426 | 30.6 | 8.1 | 6.8 | 1.8 | 850 | 3 | 2.00 |
| ET-20-30 | 30 | 30 | 426 | 28.4 | 7.5 | 6.3 | 1.7 | 750 | 3 | 1.86 |
| ET-20-15 | 15 | 60 | 852 | 13.1 | 3.5 | 2.9 | 0.8 | 1450 | 3 | 1.71 |
| ET-20-15 | 15 | 140 | 1988 | 7.16 | 1.9 | 1.6 | 0.4 | 750 | 3 | 2.18 |
| ET-20-10 | 10 | 250 | 3550 | 3.0 | 0.8 | 0.7 | 0.2 | 750 | 3 | 1.63 |
| ET-20-10 | 10 | 270 | 3834 | 3.9 | 1.0 | 0.9 | 0.2 | 750 | 3 | 2.21 |
| ET-20-10 | 10 | 125 | 1775 | 5.8 | 1.5 | 1.3 | 0.3 | 1450 | 3 | 1.58 |
| ET-20-20 | 20 | 90 | 1278 | 12.68 | 3.4 | 2.8 | 0.8 | 750 | 4 | 2.49 |
PERFORMANCE TRIPLEX PLUNGER PUMPS ET-25
| TRIPLEX PLUNGER PUMPS - Stroke Length: 25 mm | ||||||||||
| PUMP MODEL | Plunger | P Max | Q Max | n | Power at Max. Speed | |||||
| Dia. | Kg/Cm2 | PSI | LPM | IMP GPM | US GPM | M3/HR | Speed | Motor HP | BkW | |
| ET-25-25 | 25 | 70 | 994 | 14.1 | 3.7 | 3.1 | 0.8 | 750 | 3 | 2.15 |
| ET-25-40 | 40 | 20 | 284 | 48 | 12.7 | 10.7 | 2.9 | 600 | 3 | 2.09 |
| ET-25-40 | 40 | 30 | 426 | 36 | 9.5 | 8.0 | 2.2 | 450 | 5 | 2.35 |
| ET-25-30 | 30 | 25 | 355 | 46.2 | 12.2 | 10.3 | 2.8 | 1025 | 5 | 2.52 |
| ET-25-25 | 25 | 45 | 639 | 30.0 | 7.9 | 6.7 | 1.8 | 960 | 5 | 2.94 |
| ET-25-20 | 20 | 110 | 1562 | 15.0 | 4.0 | 3.3 | 0.9 | 750 | 5 | 3.59 |
| ET-25-20 | 20 | 40 | 568 | 29.0 | 7.7 | 6.4 | 1.7 | 1450 | 5 | 2.53 |
| ET-25-15 | 15 | 200 | 2840 | 8.4 | 2.2 | 1.9 | 0.5 | 750 | 5 | 3.66 |
| ET-25-15 | 15 | 70 | 994 | 19.2 | 5.1 | 4.3 | 1.2 | 1450 | 5 | 2.93 |
| ET-25-12 | 12 | 100 | 1420 | 10.4 | 2.7 | 2.3 | 0.6 | 1450 | 5 | 2.27 |
| ET-25-12 | 10 | 450 | 6390 | 3.8 | 1.0 | 0.8 | 0.2 | 750 | 5 | 3.73 |
| ET-25-12 | 10 | 230 | 3266 | 7.3 | 1.9 | 1.6 | 0.4 | 1450 | 5 | 3.66 |
| ET-25-20 | 20 | 220 | 3124 | 10.6 | 2.8 | 2.4 | 0.6 | 750 | 7.5 | 5.44 |
| ET-25-25 | 25 | 120 | 1704 | 18.2 | 4.8 | 4.0 | 1.1 | 750 | 7.5 | 5.10 |
| ET-25-30 | 30 | 80 | 1136 | 26.3 | 6.9 | 5.8 | 1.6 | 750 | 7.5 | 4.91 |
| ET-25-35 | 35 | 60 | 852 | 35.7 | 9.4 | 7.9 | 2.1 | 750 | 7.5 | 5.00 |
| ET-25-40 | 40 | 50 | 710 | 46.6 | 12.3 | 10.4 | 2.8 | 750 | 7.5 | 5.44 |
| ET-25-40 | 40 | 45 | 639 | 42.4 | 11.2 | 9.4 | 2.5 | 450 | 7.5 | 4.16 |
| ET-25-12 | 12 | 300 | 4260 | 6.4 | 1.7 | 1.4 | 0.4 | 750 | 7.5 | 4.18 |
| ET-25 N | 10 | 400 | 5680 | 7.0 | 1.8 | 1.6 | 0.4 | 1450 | 7.5 | 5.38 |
| ET-25-10 | 10 | 850 | 12070 | 4.4 | 1.2 | 1.0 | 0.3 | 750 | 10 | 7.19 |
| ET-25-15 | 15 | 400 | 5680 | 7.16 | 1.9 | 1.6 | 0.4 | 750 | 10 | 6.24 |
| ET-25-12 | 12 | 650 | 9230 | 5.5 | 1.5 | 1.2 | 0.3 | 750 | 10 | 7.30 |
EXCEL SELF PRIMING MUD PUMPS
| MECHANICAL SEAL TYPE | ||||||||||||||||
| PUMP | SIZE | Flow Capacity in M3/Hr | MOTOR HP/RPM | |||||||||||||
| MODEL | (mm) | 3 | 6 | 9 | 12 | 15 | 18 | 24 | 30 | 36 | 45 | 60 | 68 | 75 | ||
| ESF-125-012S | 32 x 32 | Head in MTR | 15.2 | 13.7 | 11.5 | 9.9 | 1/2900 | |||||||||
| ESF-125-032S | 32 x 32 | 32 | 28.5 | 24.3 | 19.2 | 10 | 3/2900 | |||||||||
| ESF-150-012D | 40 x 40 | 16.2 | 13.3 | 9.4 | 1.8 | 1/2900 | ||||||||||
| ESF-150-012S | 40 x 40 | 16.3 | 15.2 | 14.2 | 13 | 11.6 | 10 | 1.5/2900 | ||||||||
| ESF-200-022S | 50 x 50 | 20 | 19 | 17.8 | 16.5 | 15.4 | 14 | 10.2 | 2/2900 | |||||||
| ESF-200-032S | 50 x 50 | 19.8 | 18.9 | 18 | 17 | 16 | 13.7 | 10.3 | 3/2900 | |||||||
| ESF-250-052S | 65 x 65 | 19.2 | 18.5 | 18 | 16.7 | 15.5 | 14.4 | 12 | 4 | 5/2900 | ||||||
| ESF-250-072S | 65 x 65 | 29 | 28 | 27 | 25 | 23 | 20.8 | 16 | 7.5/2900 | |||||||
| ESF-250-072SA | 65 x 65 | 35 | 34.5 | 34 | 34.4 | 31 | 29 | 22.5 | 7.5/2900 | |||||||
| ESF-300-072S | 80 x 80 | 22.5 | 22 | 21 | 20.5 | 19.8 | 18.5 | 15 | 11.5 | 10.2 | 7.5/2900 | |||||
| GLAND TYPE | ||||||||||||||||
| PUMP | SIZE | Capacity in LPS | Head in Meters | MOTOR HP/RPM | ||||||||||||
| MODEL | (mm) | 8 | 10 | 12 | 14 | 16 | 18 | 20 | 22 | 24 | 26 | 30 | 34 | 44 | ||
| ESF-150-012 | 40 x 40 | 4.1 | 3.7 | 3.2 | 2.5 | 1.5 | 1/2900 | |||||||||
| ESF-150-022 | 40 x 40 | 6 | 5.5 | 5 | 4.5 | 3.8 | 3 | 2 | 2/2900 | |||||||
| ESF-200-032 | 50 x 50 | 7.8 | 7.1 | 6.5 | 5.5 | 4 | 2.2 | 3/2900 | ||||||||
| ESF-300-051 | 80 x 80 | 19 | 17.5 | 16 | 14 | 11 | 7.2 | 5/1450 | ||||||||
| ESF-300-052 | 80 x 80 | 8.5 | 8 | 7.4 | 6.5 | 3.7 | 5/2900 | |||||||||
| ESF-300-072 | 80 x 80 | 13 | 9 | 4 | 7.5/2900 | |||||||||||
| ESF-300-122 | 80 x 80 | 16.5 | 14 | 12.8 | 8 | 12.5/2900 | ||||||||||
| ESF-300-152 | 80 x 80 | 21.5 | 20.5 | 13 | 15/2900 | |||||||||||
| ESF-400-101 | 100 x 100 | 36 | 33.6 | 31 | 28.5 | 25.5 | 22.5 | 18 | 12 | 10/1450 | ||||||
| ESF-400-121 | 100 x 100 | 41 | 39.5 | 36.5 | 33.5 | 30.5 | 26 | 21.5 | 16.3 | 10 | 12.5/1450 | |||||
| ESF-600-201 | 150 x 150 | 66.3 | 63.4 | 59.8 | 55 | 48.9 | 42.4 | 34.2 | 23.8 | 20/1450 | ||||||
| ESF-600-202 | 150 x 150 | 75 | 72 | 68 | 64 | 58.5 | 52 | 45 | 34 | 20 | 25/1450 | |||||

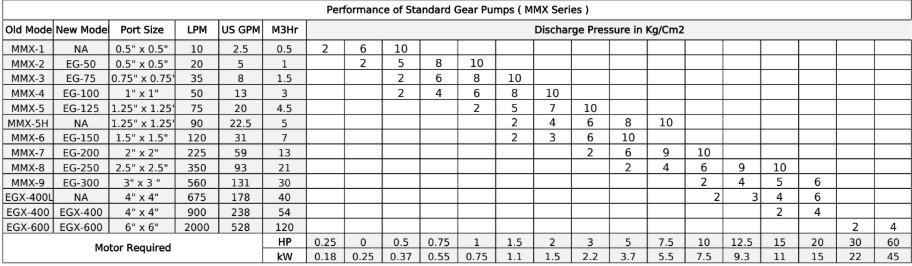

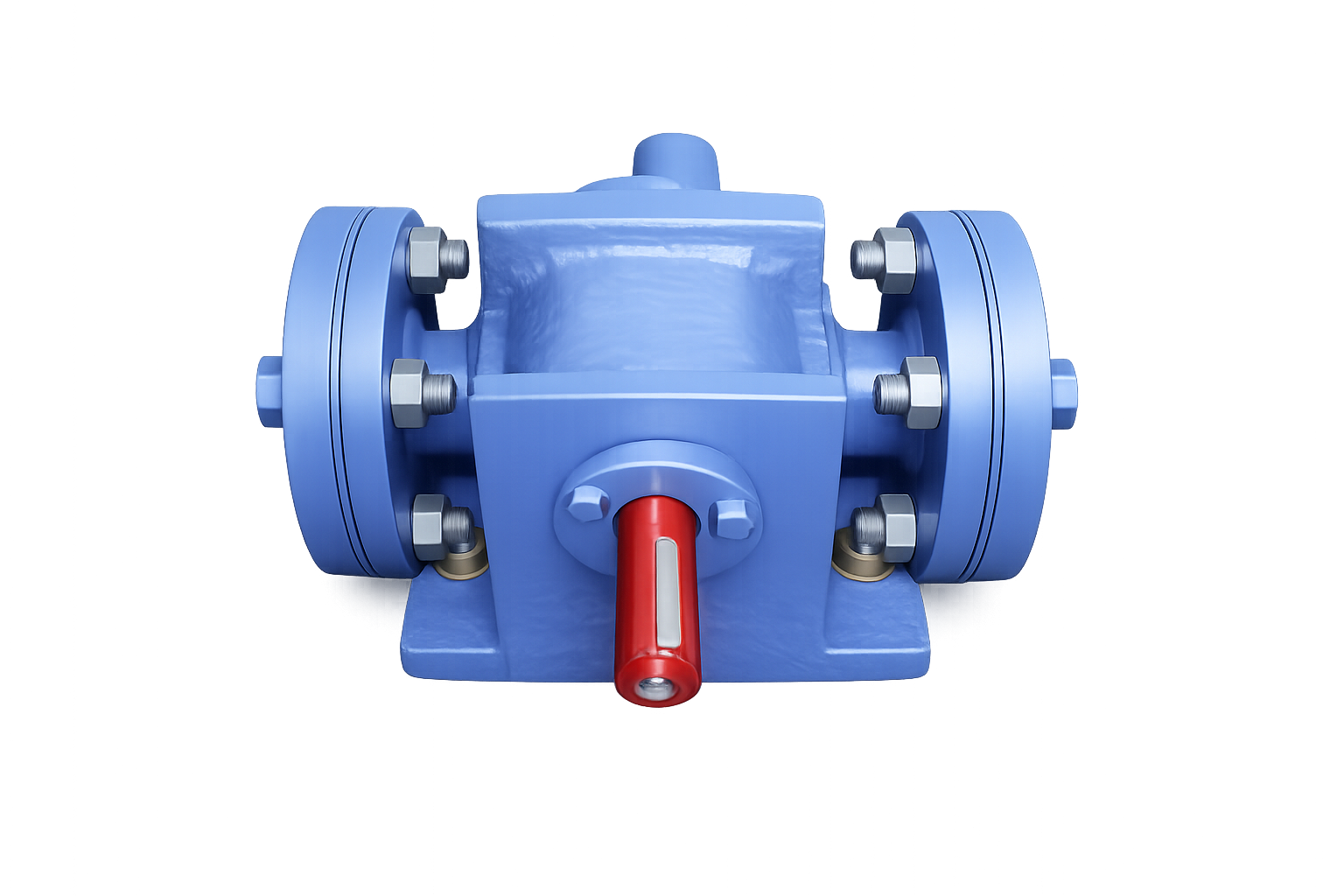

PERFORMANCE ROTARY GEAR PUMPS

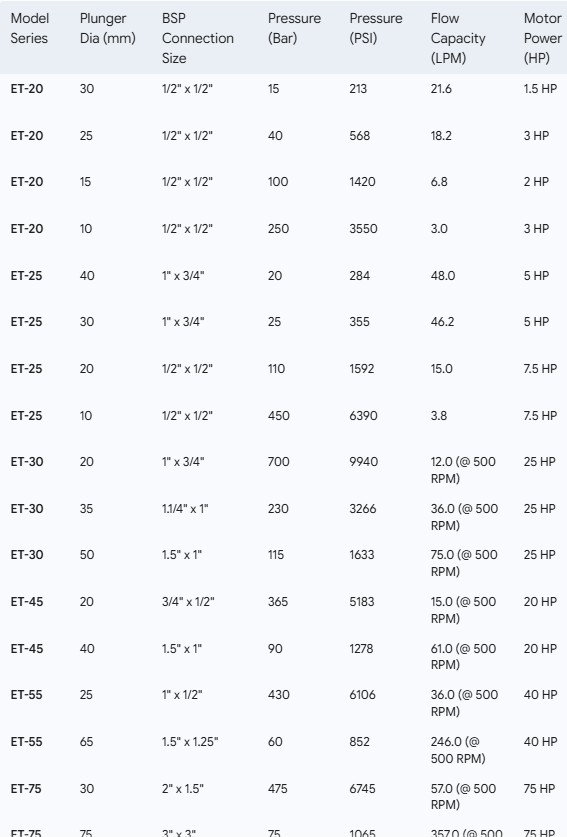

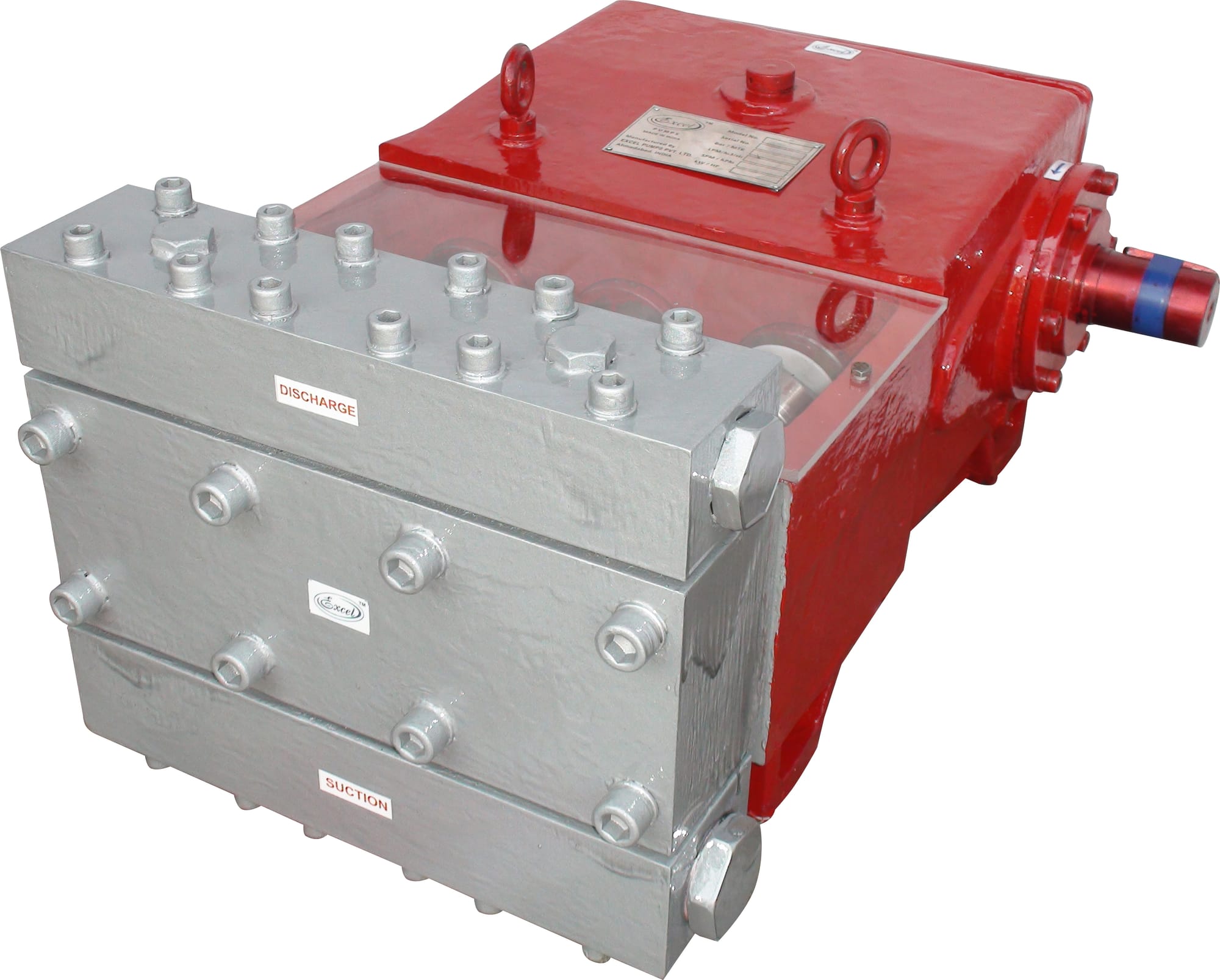

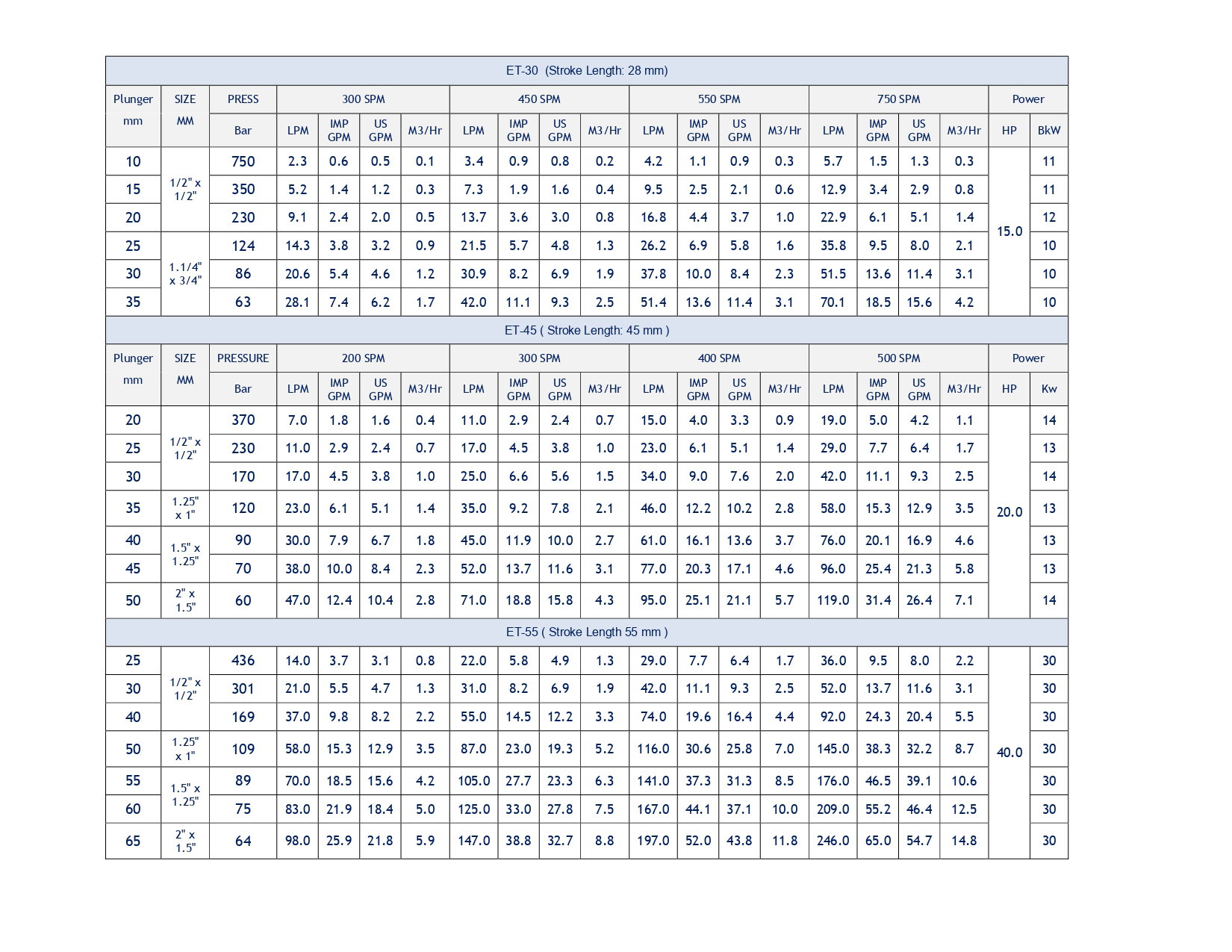

PERFORMANCE TRIPLEX PLUNGER PUMPS - ET-30-45-55
Features
Custom Designs
Based on customer's demand by our technical experts with or without accessories like Suction Tank, Control Panel , VFD Drive
Strong Material
Choose from a range of high quality materials that suits your requirement may be Cast Iron, CI with SS wear parts, All SS, GM or Brass Forged
Canopy Design
Highly functional design coupled or Belt Drive Pump Sets with aesthetic colors. SS or MS Pump Cover to extend efficient workmanship and to beautify product outlook.
Product Range
Choose from a range of Gear Pumps , Self Priming Mud Pumps or Simplex, Duplex and Triplex plunger pumps
Skid or Trolley Mount
Supplied with Skid and/or Trolley
Multiple Drive Options
IE-2 or IE-3 Electric Motor (FLP or Non FLP) , Engine (Diesel or Petrol) , PTO or Gear Box Drive
Third Party Inspection
EIL, DNV, BVQL, PDIL, IRS, Lloyd, CEIL, NTPC, BHEL
Installation

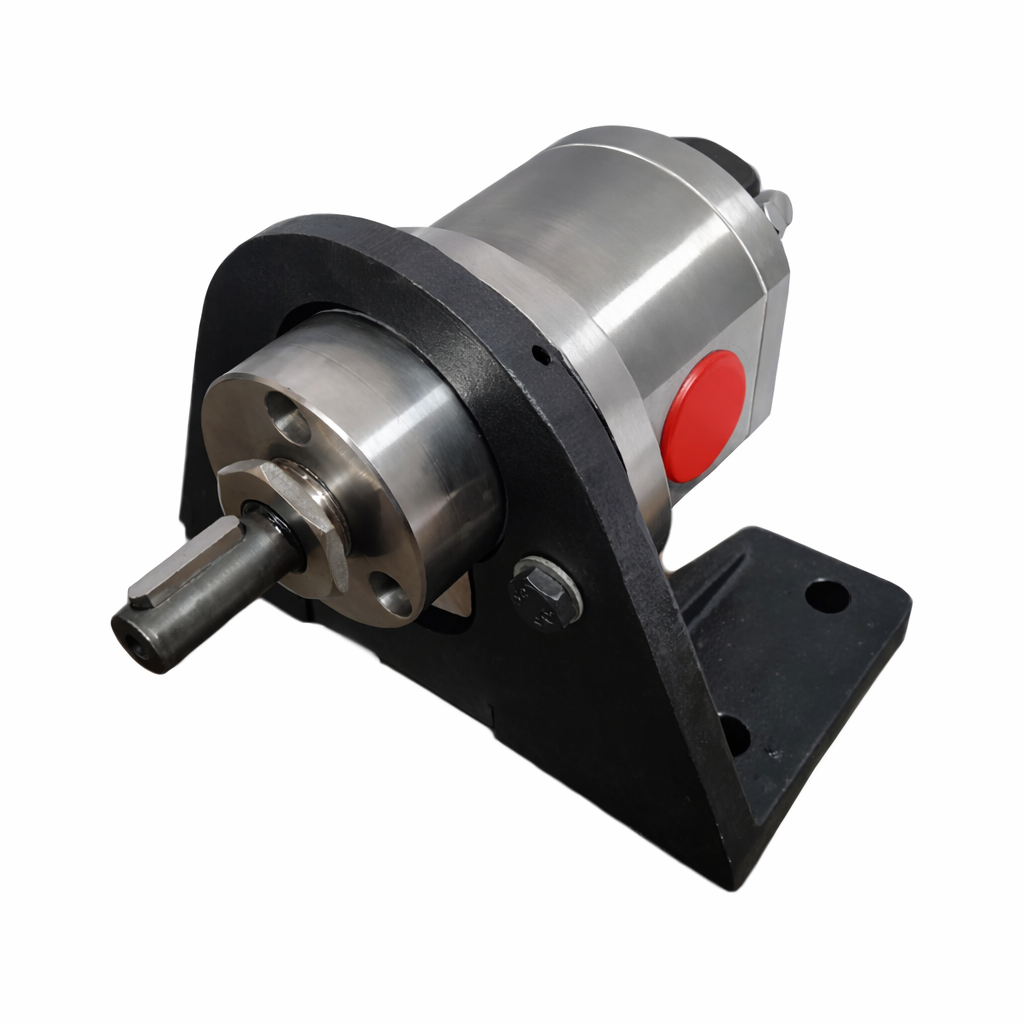

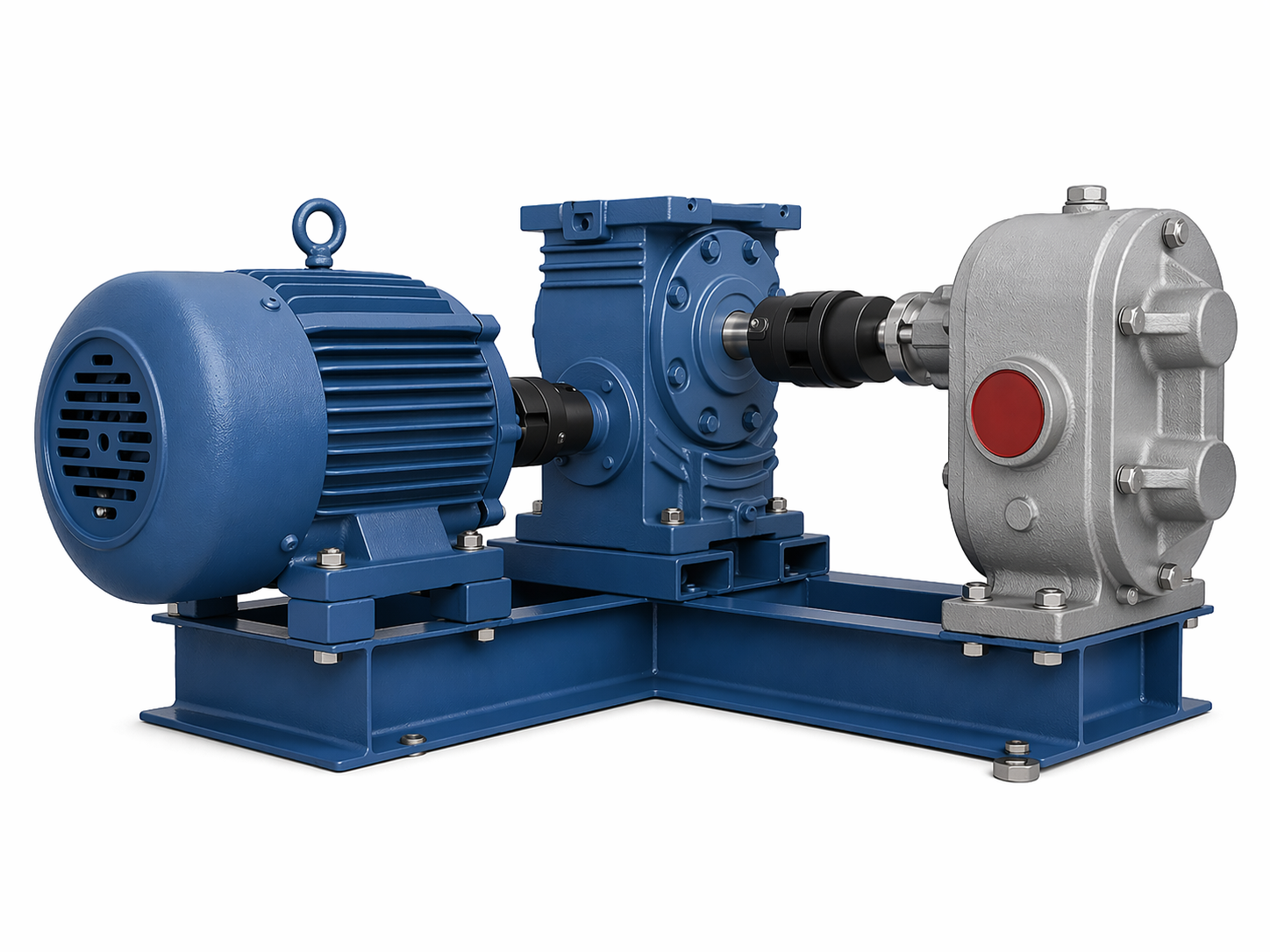

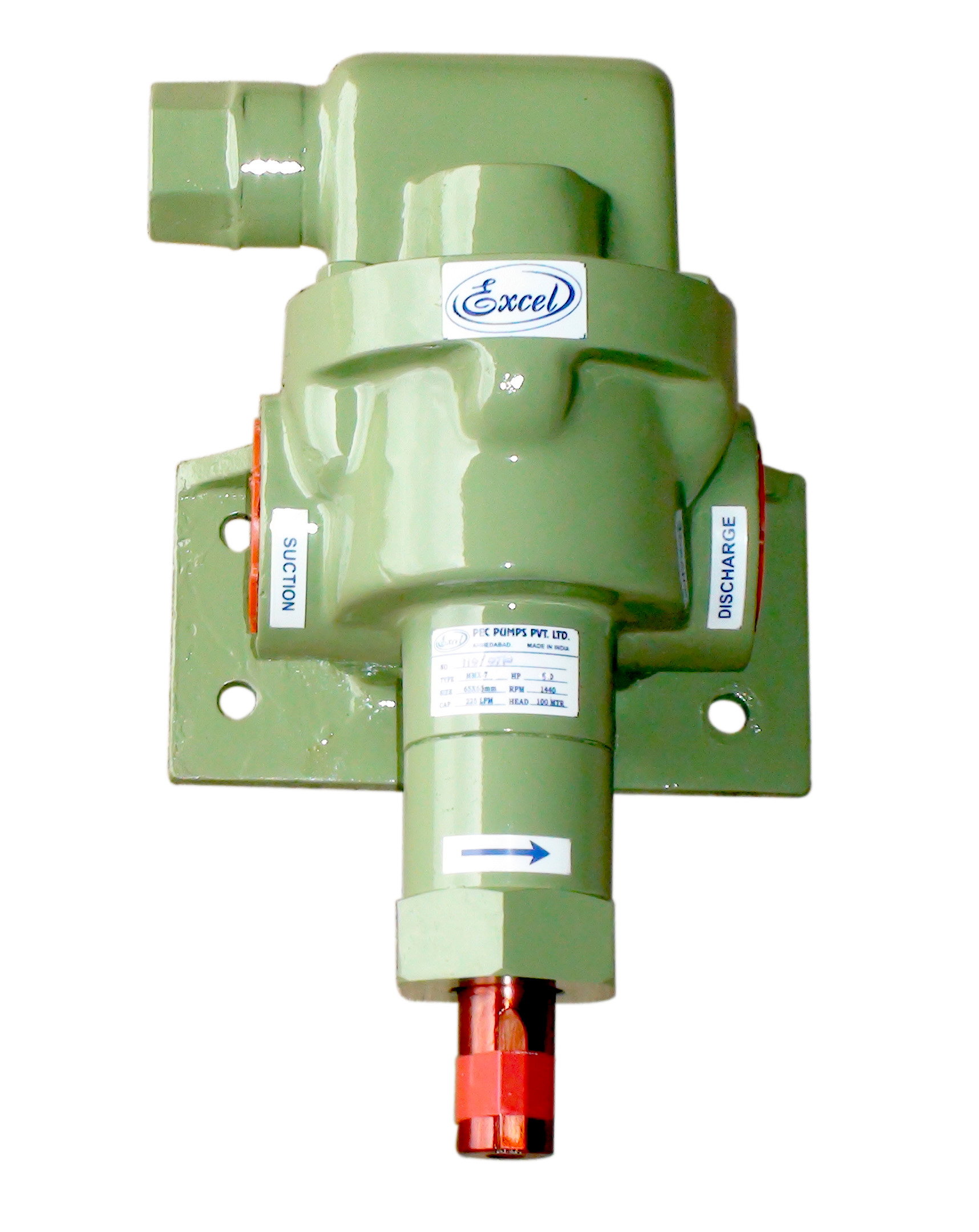

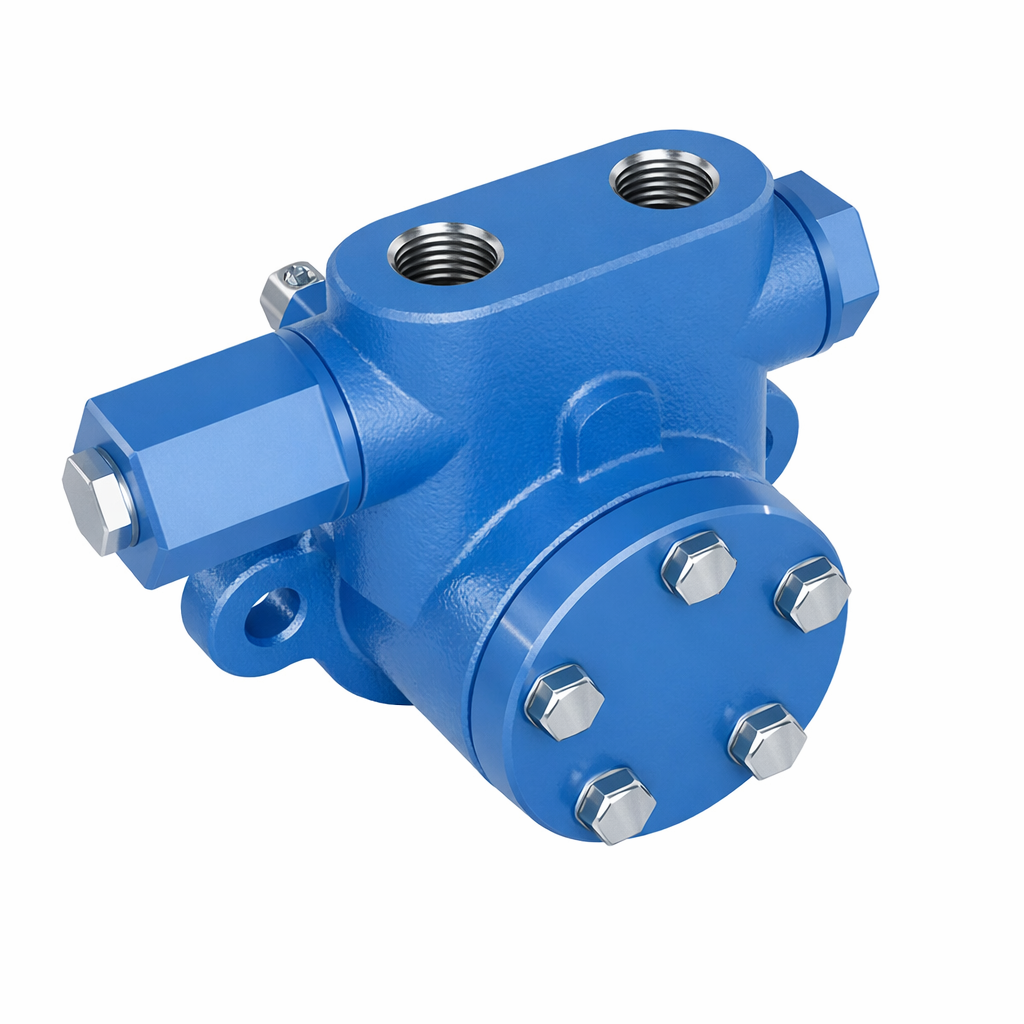

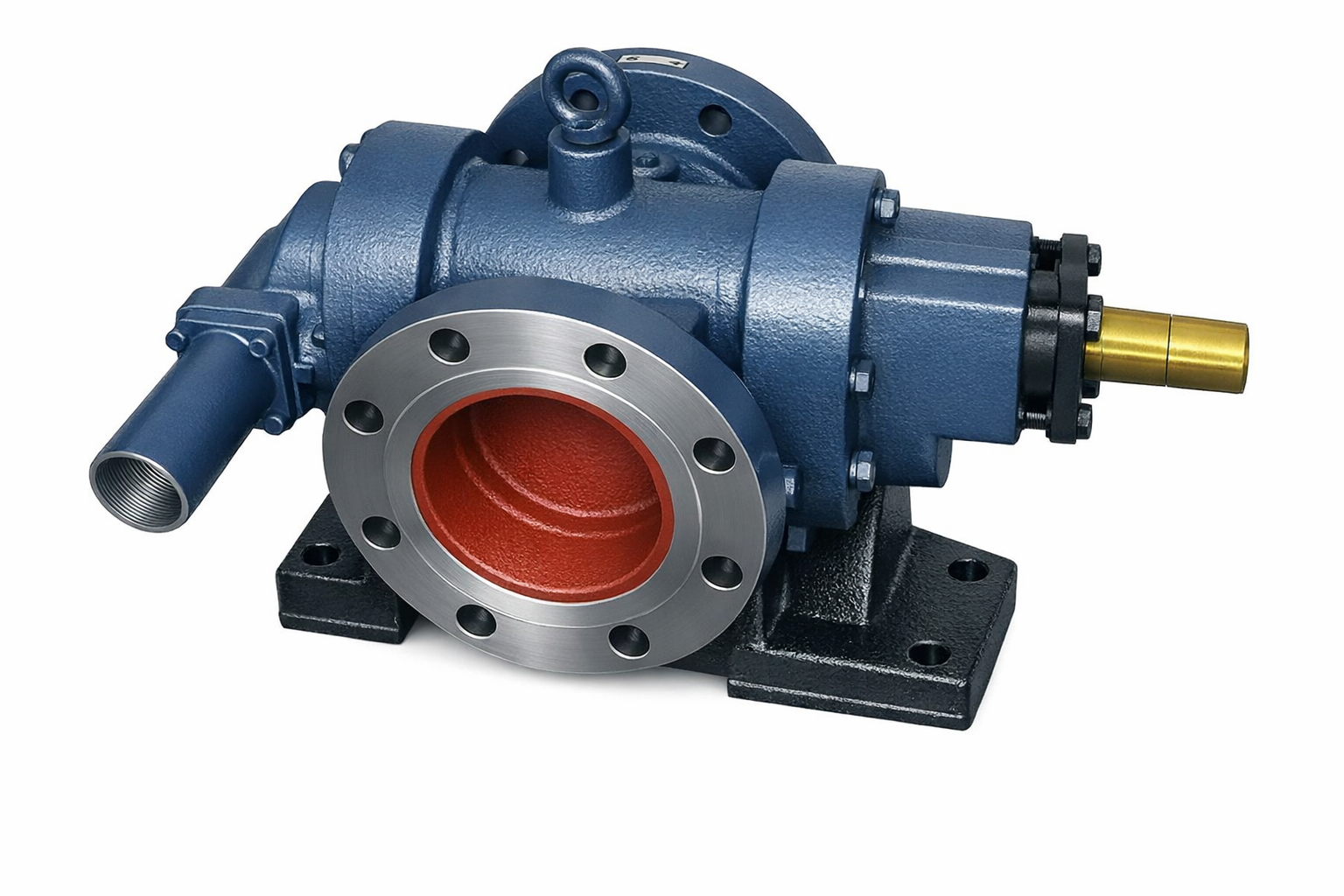

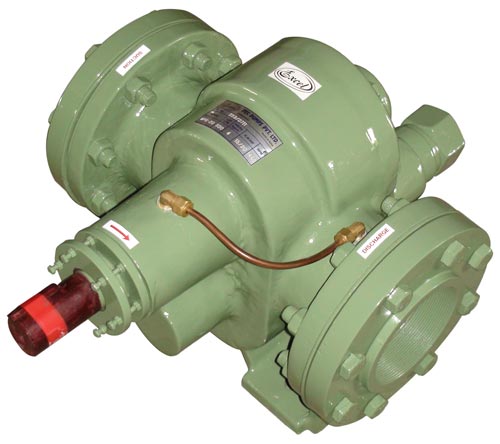

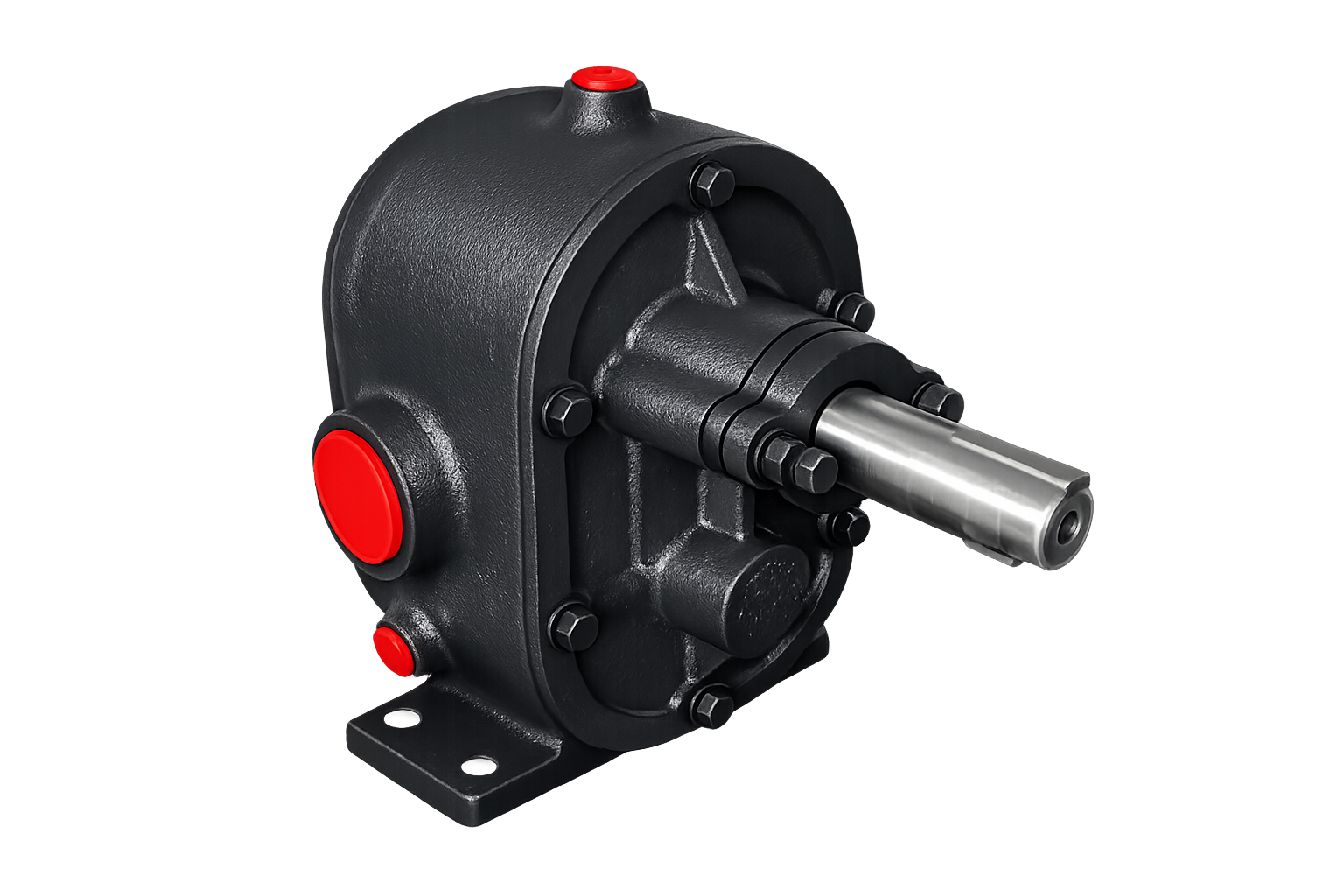

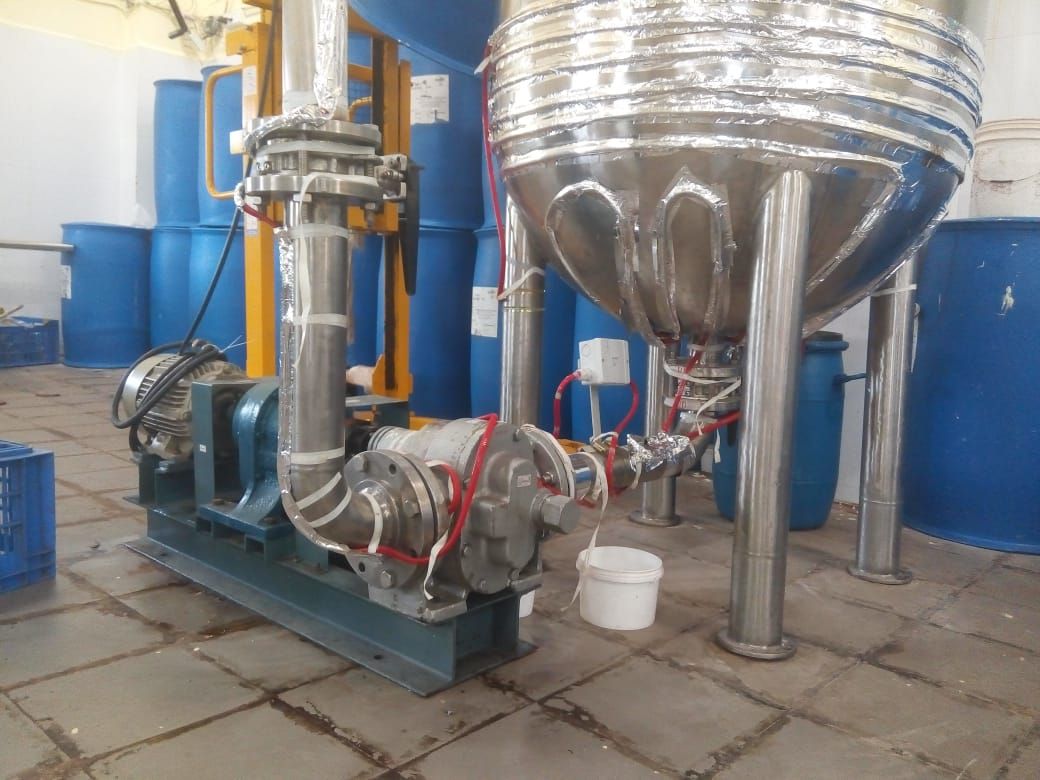

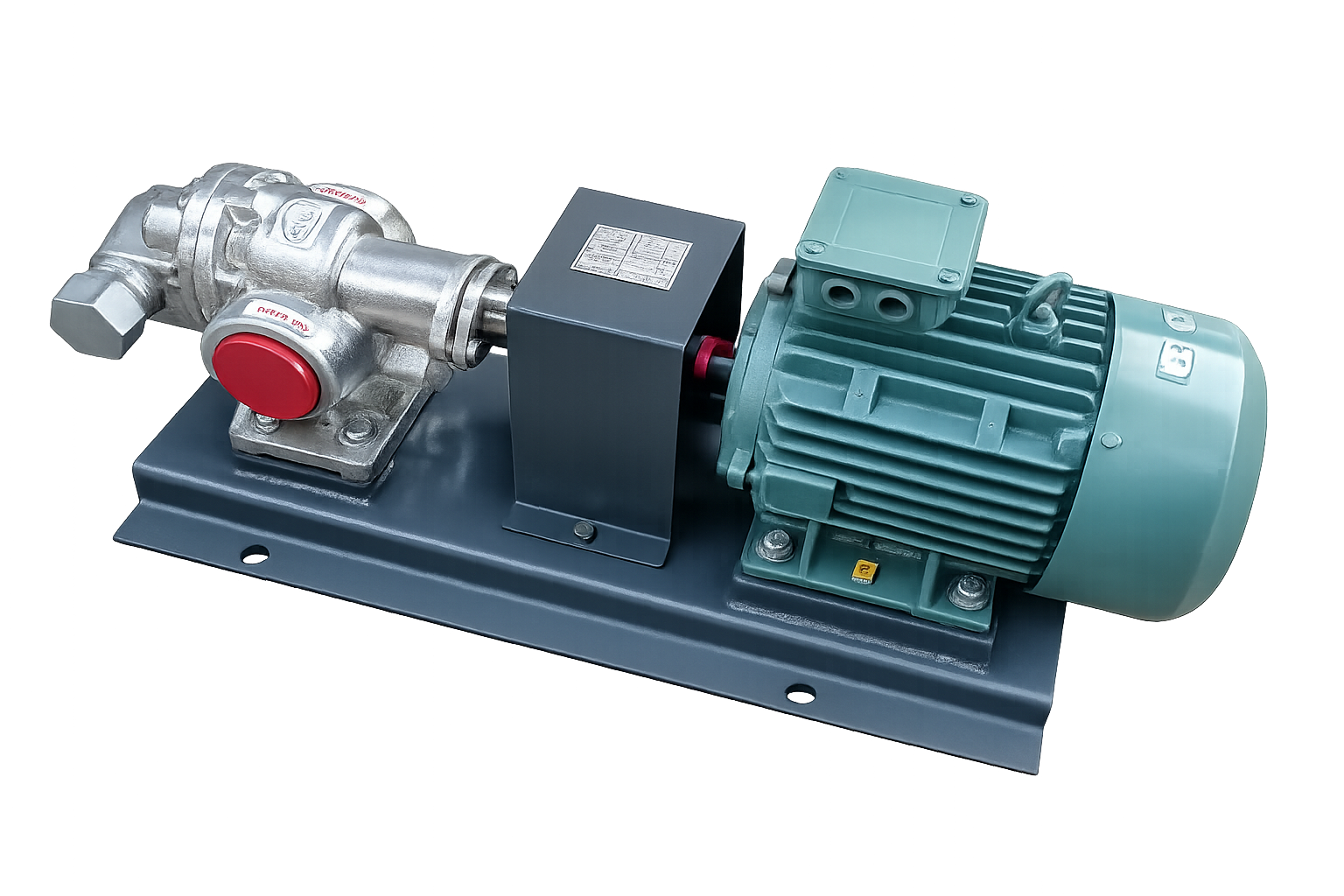

GEAR PUMPS
Application review and engineering support to match flow, head, fluid, and duty cycle for optimal performance and efficiency.
MUD PUMPS
Supply of complete pump packages-motors, seals, drives, and baseplates-ready to install and align with your process.

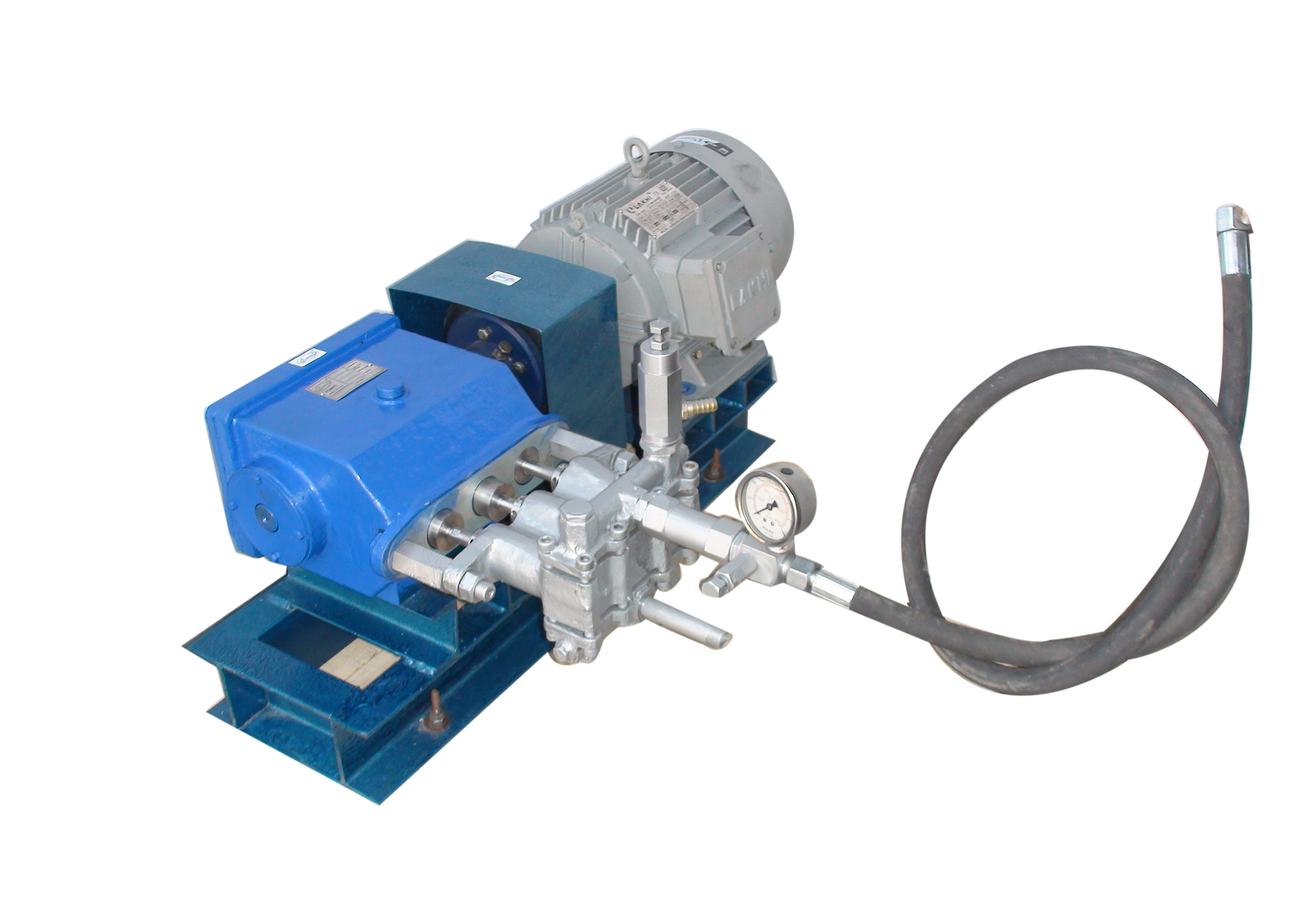

JETTING PUMPS

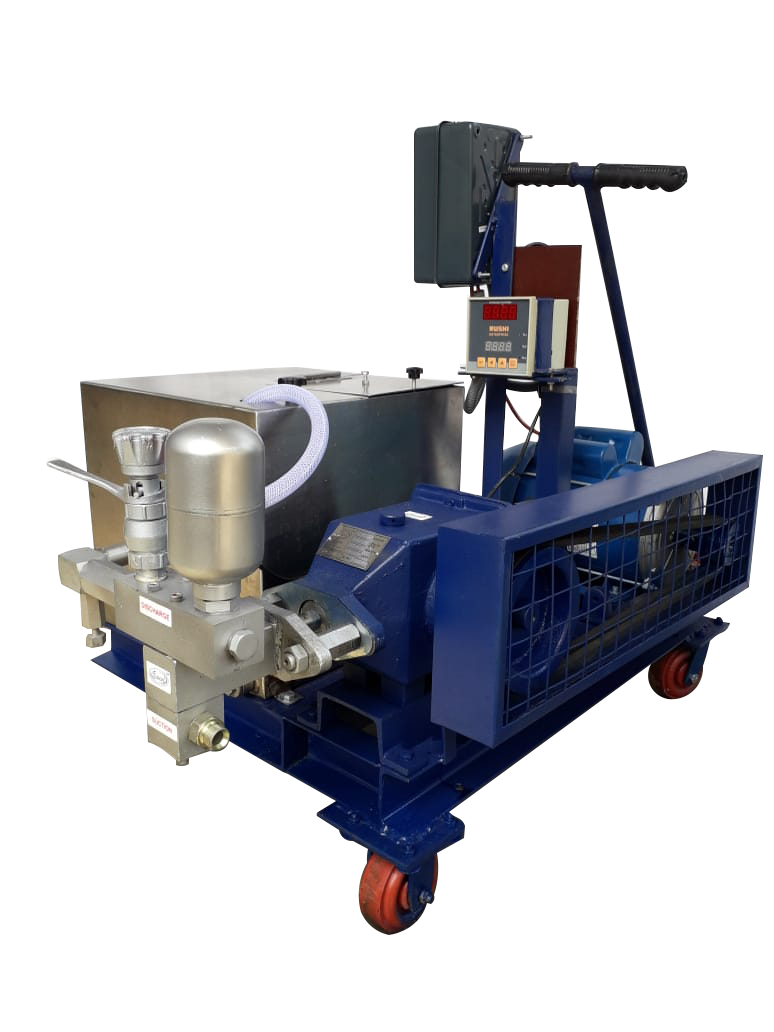

High Pressure Jetting Trolley Drive with Control Panel- ATEX Certified ready to use in Offshore Applications
Customers
Download
External Gear Pumps
Product Catalog
Internal Gear Pumps
Product Catalog
Centrifugal Pumps
Product Catalog
Self Priming Mud Pumps
Product Catalog
Plunger Pumps
Product Catalog

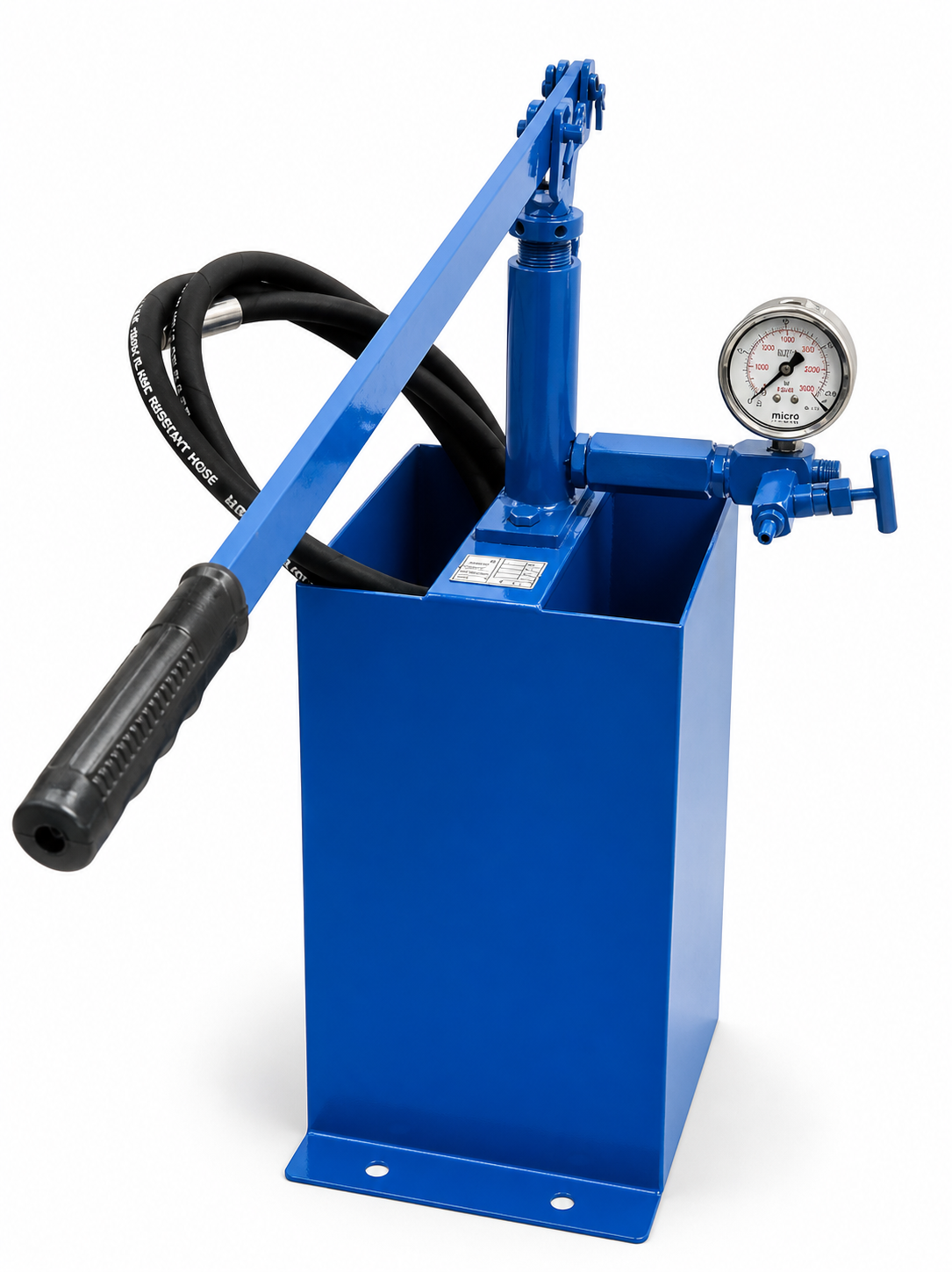

Hydro-Test Pumps
Product Catalog
Company Profile
Company Profile
Product Brochure
Brochure
Legal Info
CIN Number
U29120GJ1988PTC010553
PAN Number
AAACP9365L
IEC Code
0896002608
MSME DIC
EM22400711001672
GST Number
24AAACP9365l1Z0
SSI EMR No:
24-007-11-01672 dated 08-08-2007
Bankers:
BANK OF BARODA, LAW GUARDEN BRANCH, AHMEDABAD, INDIA, A/C. N0: 29760500000331, IFSC: BARB0LAWAHM BANK OF BARODA, NAVRANGPURA BRANCH, AHMEDABAD, INDIA, A/C. N0: 03330200000496, IFSC: BARB0NAVRAN
Contact
- Ahmedabad, Gujarat, India
- +91-98240-36015
- sales@excelpumps.in
- Mon-Fri - 09:30-19:30
FAQ-Triplex Pumps
Have Experience of the High Pressure Master

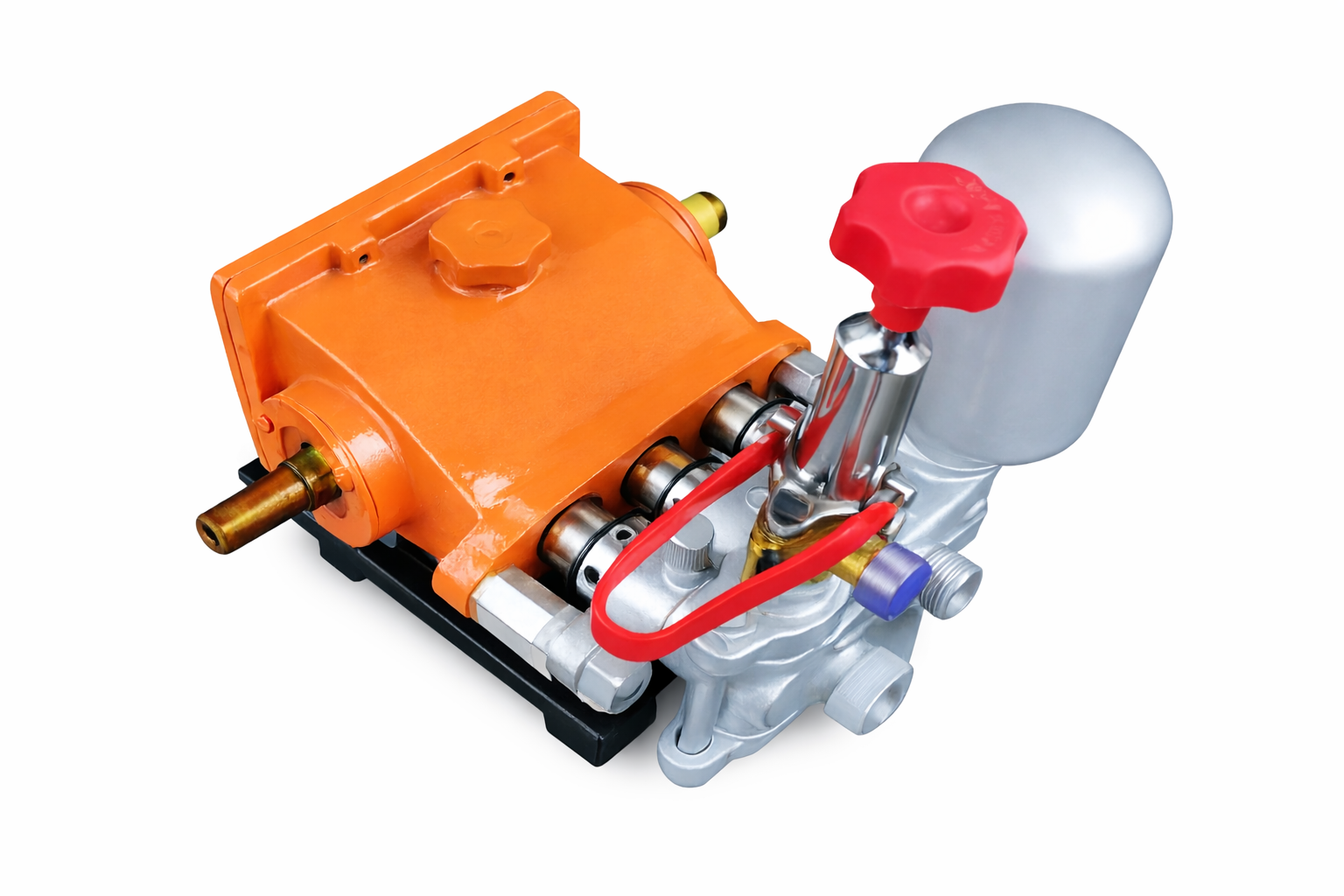

What is the maximum pressure of the EXCEL Triplex Plunger Pump?
This model is designed for operation up to 1000 bar, subject to the selected configuration and operating conditions.
What flow rate does the EXCEL Triplex Plunger Pump provide?
The standard configuration provides approximately 20 LPM to 350 LPM at the specified operating conditions based on pump speed
What motor HP is required to drive EXCEL Triplex Plunger Pump?
Motor power depends on actual flow, pressure, pump efficiency and duty. Excel Pumps can recommend the appropriate motor based on the required operating point. The Selected Pump Model May required between 5 HP to 200 HP
Can the pump be supplied with a Diesel Engine or Reduction Gear Box?
Yes, suitable configurations can be supplied depending on the application and required operating conditions.
What industries use EXCEL Triplex Plunger pump?
- Oil and Gas: Used for crude oil transfer, salt water disposal, drilling mud injection, and pipeline hydro-testing.
- Power Generation: Utilized for high-pressure boiler feed water and condenser tube cleaning.
- Chemical and Petrochemical: Applied for precise chemical dosing, metering, and reactor feed applications.
- Manufacturing and Metalworking: Employed in heavy-duty surface descaling, parts washing, and hydrostatic leak testing of vessels.
Applications of EXCEL Triplex Plunger pump ?

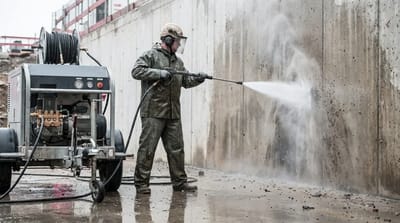

High Pressure Cleaning
Boiler Feed
Dust Suppression
Vehicle Wash
Spraying
Reverse Osmosis
Salt Water Injection
Injection
Hydrostatic Testing
Conveyance of Clean Water
Corrosive Chemical
Slurries, Oil & Viscous Liquid
Cryogenic Liquids
Handling even high temperatures
Boiler Feed
Dust Suppression
Vehicle Wash
Spraying
Reverse Osmosis
Salt Water Injection
Injection
Hydrostatic Testing
Conveyance of Clean Water
Corrosive Chemical
Slurries, Oil & Viscous Liquid
Cryogenic Liquids
Handling even high temperatures
FAQ-Mud Pumps
Your Partner in Swattchh Bharat Abhiyan

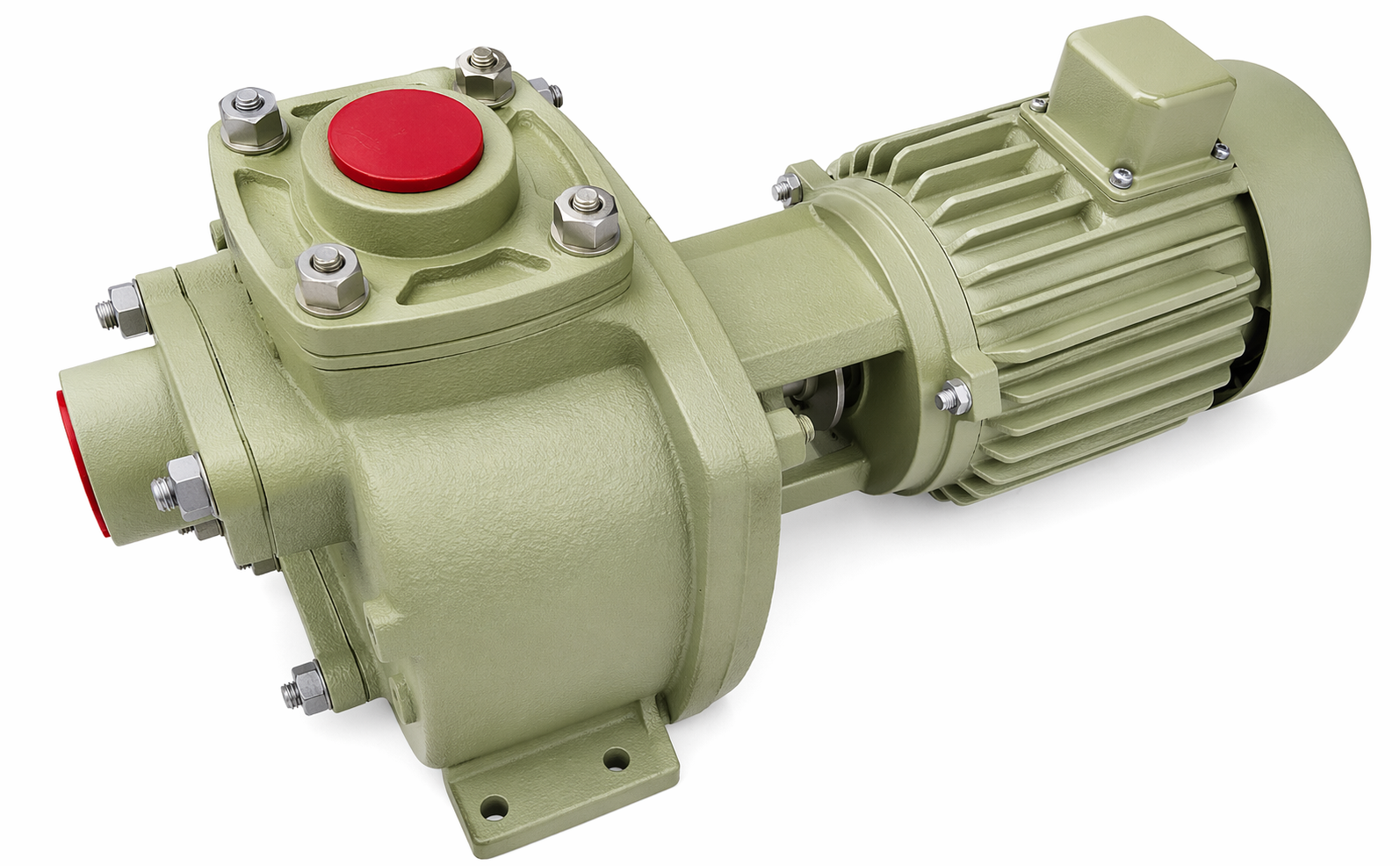

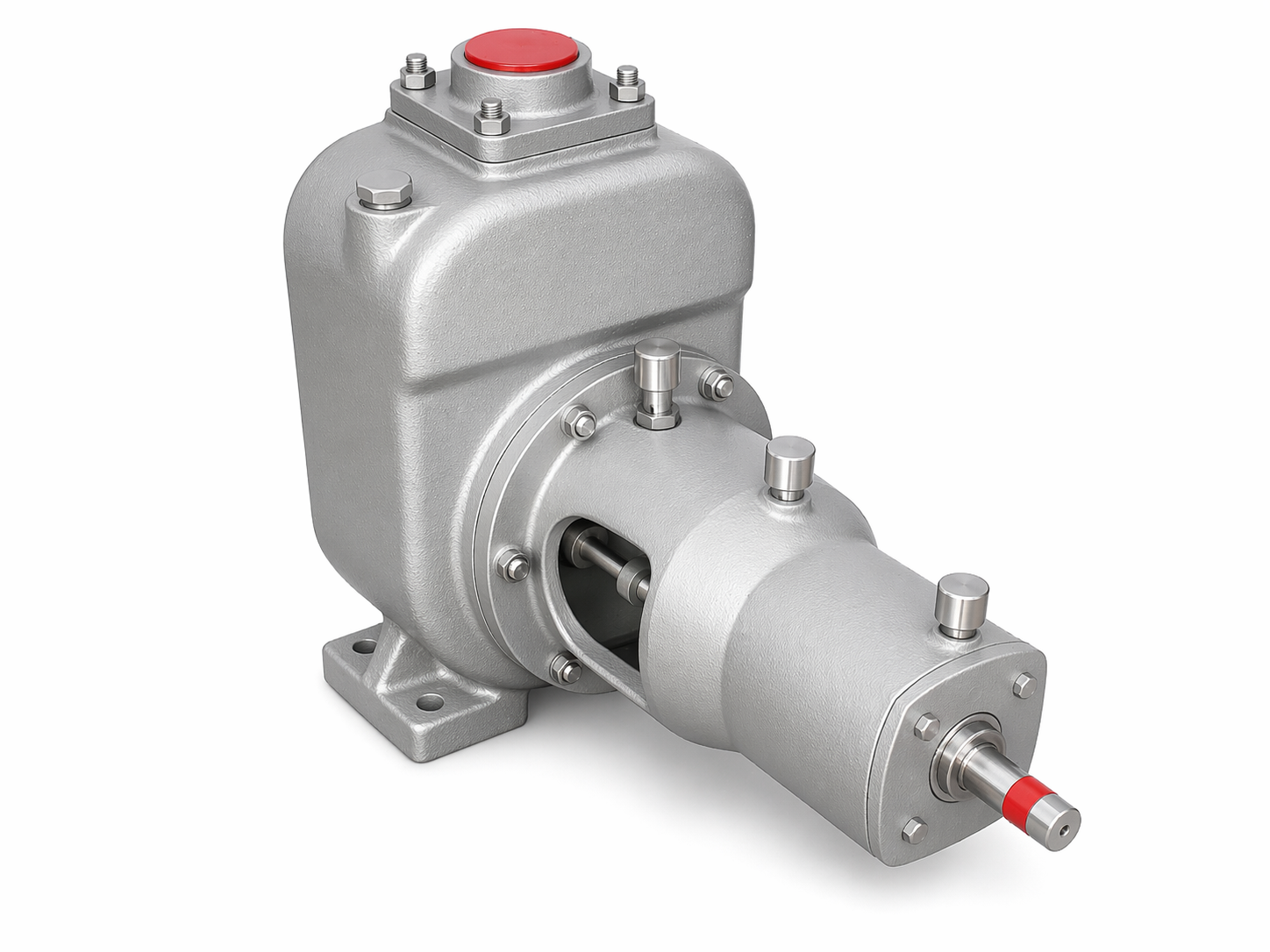

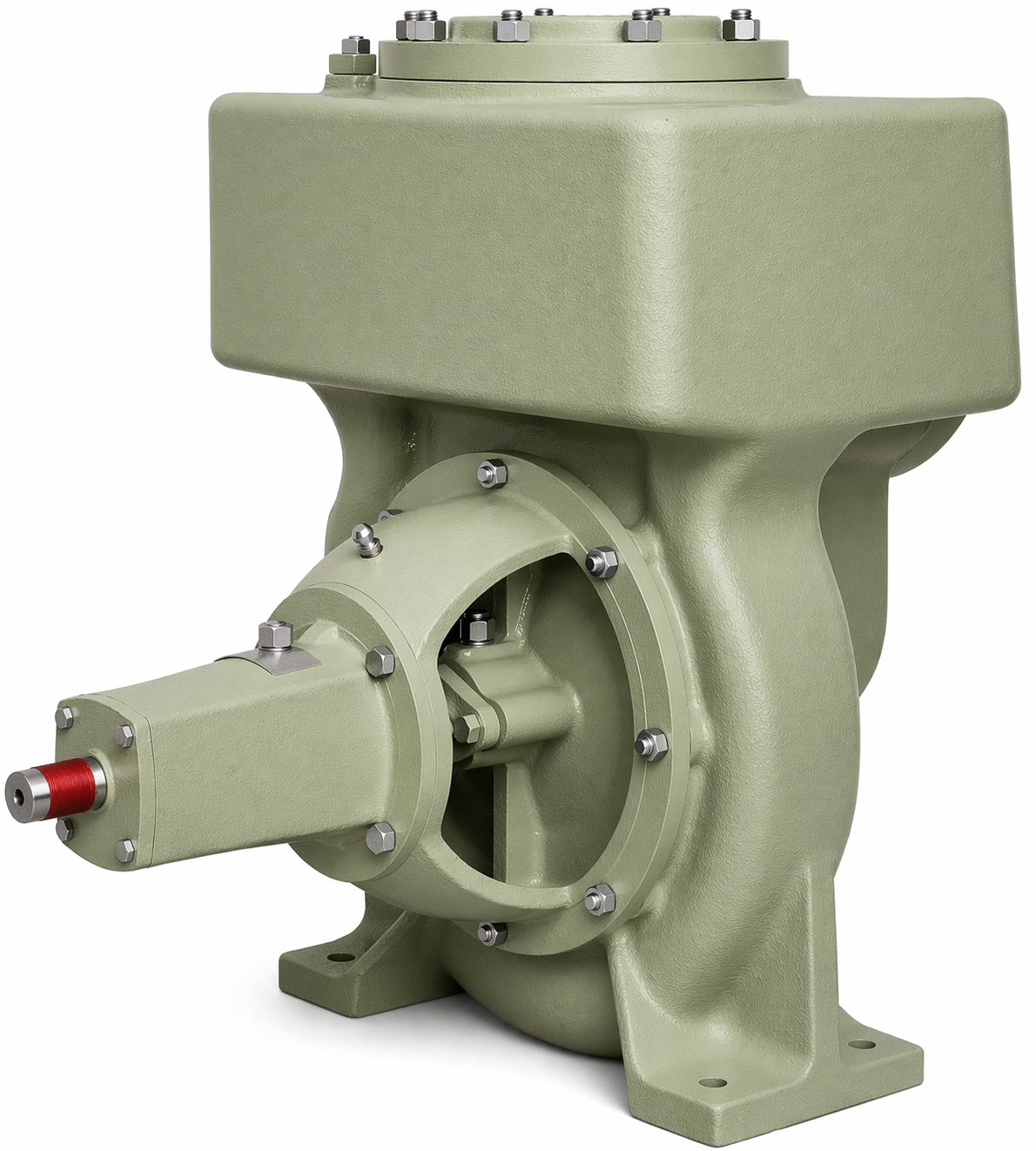

What is an EXCEL Self Priming Mud Pump, and how does it work?
An EXCEL Self Priming Mud Pump is a heavy-duty, non-clog centrifugal pump engineered to handle dirty water, mud, sewage, and liquids containing suspended solids.
Unlike standard centrifugal pumps, it features an automatic self-priming mechanism that purges air from the suction line during startup without requiring a foot valve. Once primed, it creates a continuous suction lift to draw up heavy slurries and muddy water effortlessly.
Unlike standard centrifugal pumps, it features an automatic self-priming mechanism that purges air from the suction line during startup without requiring a foot valve. Once primed, it creates a continuous suction lift to draw up heavy slurries and muddy water effortlessly.
Does this pump require a foot valve or manual priming every time?
No. EXCEL Mud Pumps do not require a foot valve. The internal casing is designed to retain a small amount of liquid after stopping. When restarted, the pump automatically evacuates trapped air and creates a strong vacuum up to 8 meters of suction lift.
What are the key performance specifications of EXCEL Mud Pumps?
EXCEL offers two standard seal configurations to match different operational requirements:
| Parameter | Gland Packing Design | Mechanical Seal Design | ||||||||||||||||||
| Available Sizes | 1.5″ to 6″ | 1.25″ to 3″ | ||||||||||||||||||
| Max Capacity (Flow Rate) | Up to | Up to | ||||||||||||||||||
| Max Differential Head | Up to | Up to | ||||||||||||||||||
| Max Solid Handling Size | Up to | Up to | ||||||||||||||||||
| Suction Lift Capacity | Up to | Up to
|
What particle size can EXCEL Mud Pumps handle without clogging?
Depending on the model and impeller selection, EXCEL Self Priming Mud Pumps can handle solid particles ranging from 24 mm up to 46 mm in diameter without clogging, thanks to their specially designed semi-open non-clog impellers.
What materials of construction (MOC) are available?
We offer standard and customized material combinations based on liquid composition, acidity, and temperature:
- Pump Volute / Body: Cast Iron (FG-220 / FG-260)
- Impeller: Cast Iron, Bronze (85/5/5/5), Stainless Steel SS-304 (CF-8), or SS-316 (CF-8M)
- Shaft & Sleeve: High-tensile EN-8, SS-410, or SS-316
Can EXCEL Mud Pumps be driven by diesel engines as well as electric motors?
Yes. EXCEL Mud Pumps can be supplied as bare-shaft units or fully coupled sets mounted on a common base frame driven by either a 3-phase electric motor or a diesel engine. Diesel-engine driven units are ideal for remote construction sites, agricultural fields, and emergency dewatering where electricity is unavailable.
What makes maintenance easy on EXCEL Mud Pumps?
Our pumps feature a Back Pull-Out Design. This allows the rotating element (impeller, shaft, bearing housing) to be inspected or replaced without disconnecting the pump casing from the suction and discharge pipelines, significantly reducing downtime and labor costs.
What are the common industry applications for EXCEL Mud Pumps?
EXCEL Self Priming Mud Pumps are widely used across various sectors:
- Construction & Mining: Dewatering construction pits, basements, and storm water drainage.
- Municipalities: Sewage transfer, flood relief, and rain water harvesting.
- Industrial Effluent Treatment: Transferring muddy, dirty, light acidic, or chemical-laden effluent water.
- Ports, Docks & Marine: Bilge water removal, drain water management, and pit desilting.
- Steel & Rolling Mills: Scale-removing acid spray and dirty water recycling.
FAQ-Centrifugal Pumps
Heavy Duty Process Plant Water or Other Liquid Transfer Applications

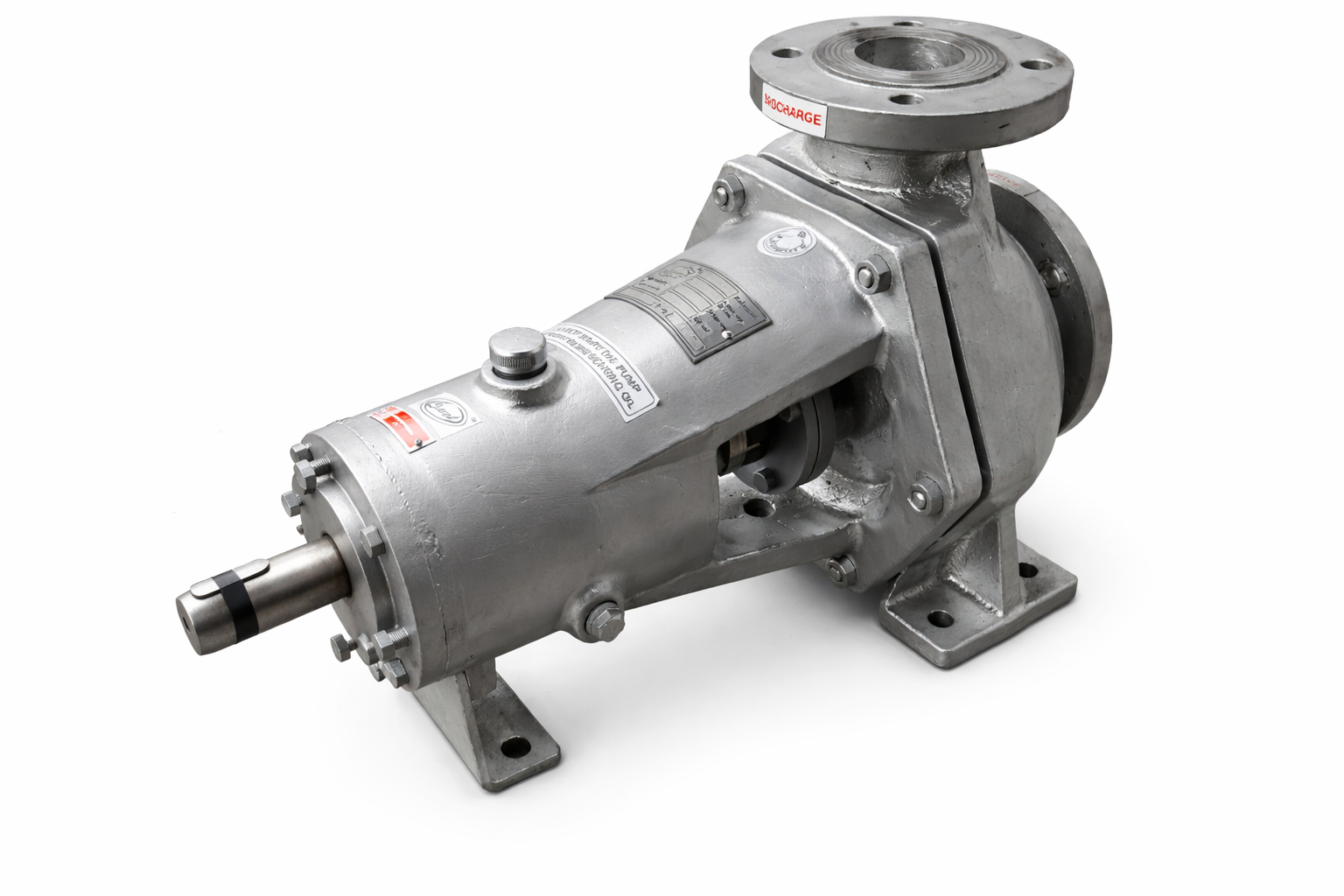

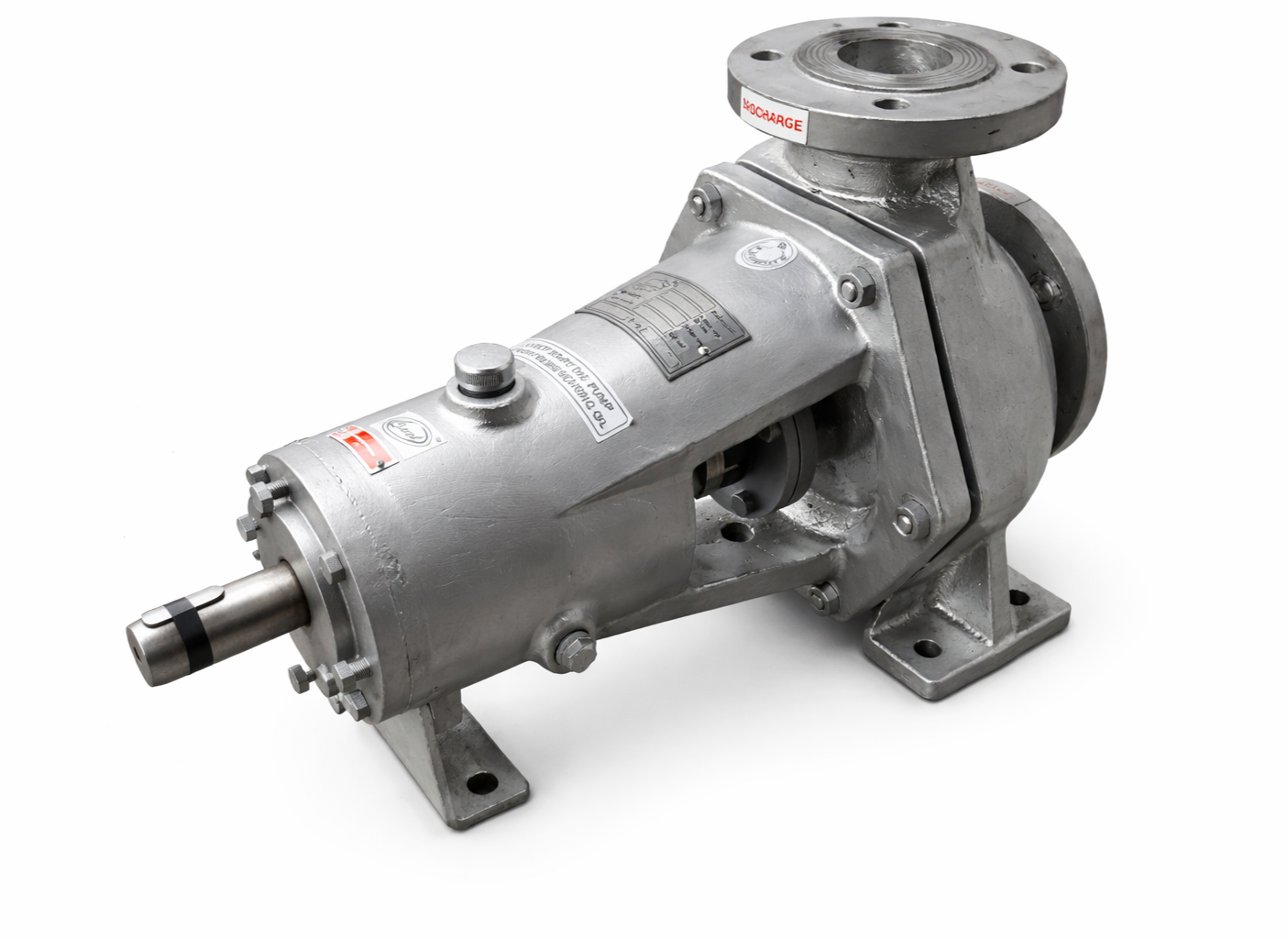

How does an EXCEL Centrifugal Pump work?
It uses a spinning impeller to pull liquid in and fling it outward via centrifugal force, turning motor energy into smooth, continuous fluid flow.
Are EXCEL centrifugal pumps self-priming?
No, EXCEL Centrifugal Process Pumps needs an external priming foot valve
What fluids can these pumps handle?
They handle industrial water, muddy slurries and mild chemicals depending on the selected internal build.
What materials are used for the pump construction?
They are available in rugged Cast Iron, heavy-duty Stainless Steel, or combined CI/SS configurations to match fluid corrosiveness.
What size of Centrifugal Pumps options are available with EXCEL Pumps?
Standard self-priming and mud variants range of Discharge Port Sizes from 1 Inch up to 8 inches
Can I get a custom-engineered pumping solution from EXCEL Pumps?
Yes, custom design and tailor-made industrial pumping configurations are available for unique plant requirements
Can the pump be supplied with a Long Coupled Electric Motor or Diesel Engine?
Yes, suitable configurations can be supplied depending on the application and required operating conditions.
FAQ-Manual Test Pump
Remote Application Hydro-Test of Tubes, Valves, Engine Head & small parts

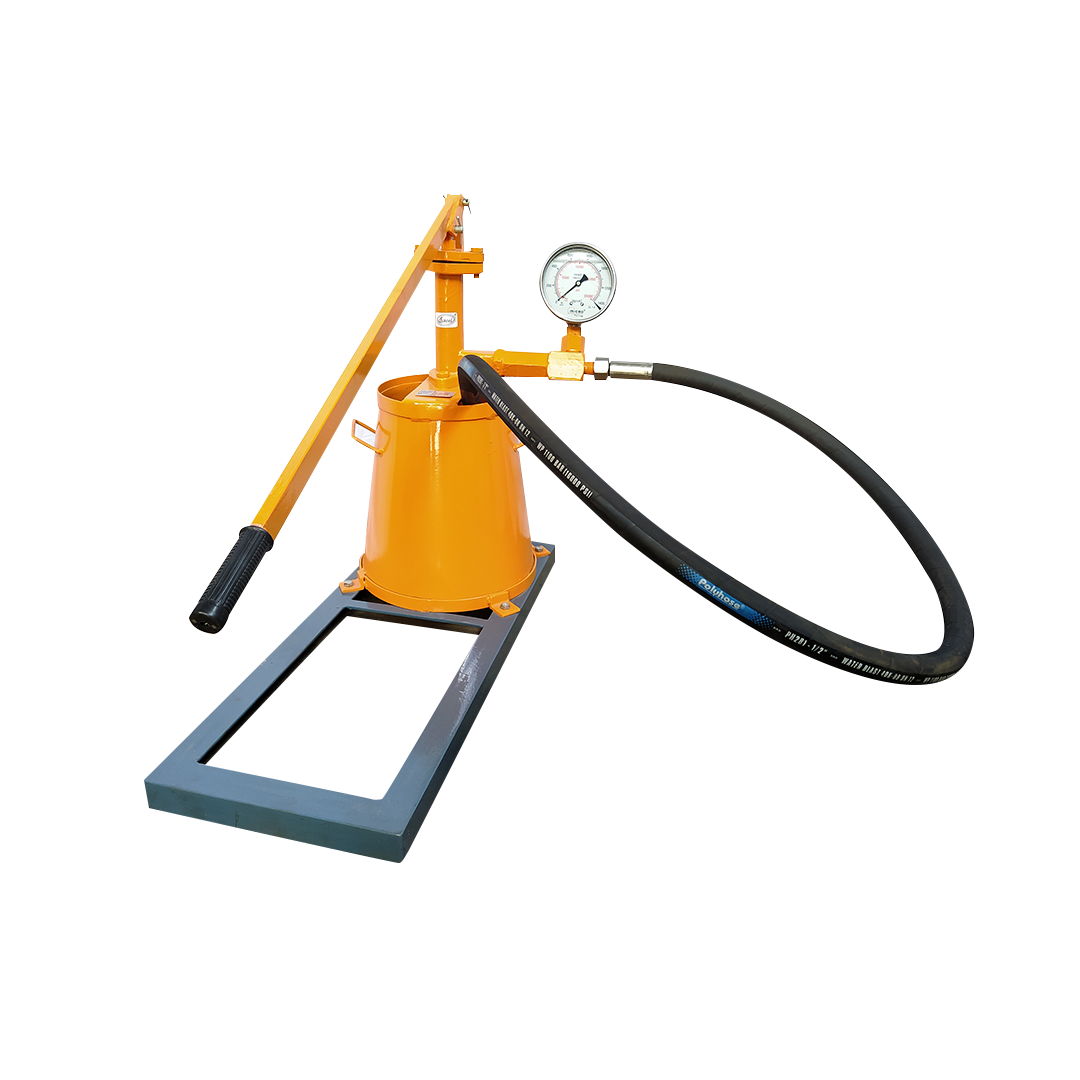

What is an Excel Manual Test Pump?
Hand-operated pump designed for hydrostatic pressure testing of pipelines, pressure vessels, boilers, heat exchangers, valves and other pressure-containing systems.
Does it require electricity?
No. It is manually operated.
What is the test medium?
Water is normally used for hydrostatic testing. Sometimes, Hydraulic Oil is also used as pumping media
Can it test heat exchangers?
Yes, provided the pump's pressure rating and connections are suitable for the heat exchanger and even for smallest engineering parts subject to Hydro-Test.
How is the required pressure achieved?
The operator uses the hand lever to pump test fluid into the closed system until the required pressure is reached. In case of query you can watch video of EXCEL Manual Test Pumps about how to achive desired pressure.

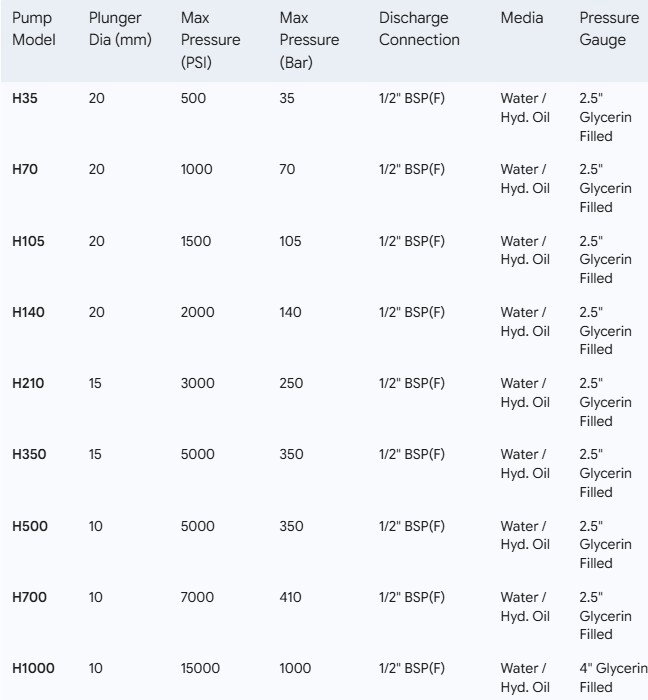

How do I select a model?
Selection depends mainly on required test pressure, system volume, application and connection requirements. EXCEL Manual Test Pump are available with 1.5 MTR or Higher length of High Pressure Hose having Discharge End Connection of 1/2" BSPF
Can Excel provide application-specific configurations?
Yes, suitable configurations can be discussed based on the customer's pressure-testing requirements.
What safety precautions are required?
Never exceed the rated pressure of the pump or equipment under test, and ensure all connections, hoses, valves and gauges are suitable and secure.
FAQ-Internal Gear Pumps
Noice-less Operations for High Viscous Liquids at High Pressure
How does EXCEL Internal Gear Pump work?
Liquid enters the suction port as the rotor and idler teeth unmesh, creating an expanding volume that pulls fluid in. A stationary crescent seal blocks the liquid from moving backward, and the remeshing of the teeth at the discharge port forces the fluid out.
What are the main parts of the EXCEL Internal Gear Pumps?
The primary components include an internal rotor gear, an external idler gear, a crescent-shaped partition, a casing, and fluid ports.
Are EXCEL Internal Gear Pumps self-priming?
Yes, they have strong suction capabilities and can self-prime under normal operating conditions.
What fluid viscosity range EXCEL Internal Gear Pumps can handle?
They operate effectively across a broad spectrum, from thin solvents (1 cP) up to thick viscous liquid having viscosity up to 1,000 cP.
Can they handle abrasive fluids or solids?
They are designed for clean or filtered liquids. Mildly abrasive slurries can be handled if you use specialized hardened internal components, but heavy solids will cause rapid wear.
Can they run dry?
No. While they are self-priming, running them dry for extended periods destroys internal clearances, bushings, and seals due to a lack of lubrication.
What will be the life of EXCEL Internal Gear Pumps?
With correct installation and fluid compatibility, they can run for thousands of hours with minimal servicing
What are the common industry applications for EXCEL Internal Gear Pumps?
Industrial Manufacturing: Low-volume chemical injection, precise adhesive or resin dispensing, and ink circulation for printers.
Automotive & Transport: Pumping and dosing DEF/AdBlue (urea) systems, fuel cells, and small lubrication circuits.
Medical & Lab Devices: Fluid transfer and precise chemical dosing in dialysis machines and analytic instruments.
Clean Energy: Coolant circulation and fuel delivery loops in compact alternative-energy systems.
FAQ-External Gear Pumps
Oil, Diesel, Paste, Molasses or Foam - Solution For All
How does an EXCEL external gear pump work?
As the gears unmesh on the inlet side, they create an expanding volume that creates a vacuum, drawing fluid into the pump casing. The fluid is trapped between the gear teeth and the housing wall as the gears rotate around the outer perimeter. Finally, as the teeth remesh on the outlet side, the volume shrinks and forces the fluid out under pressure.
Are EXCEL external gear pumps self-priming?
Yes. Because they are positive displacement pumps, they can evacuate air from the suction line to create a vacuum and draw fluid up into the casing. However, running them completely dry for extended periods can cause severe wear due to lack of internal lubrication.
What is the maximum Flow and Pressure EXCEL External Gear Pumps can offer? What Design and Prime movers can be used with the said pumps
EXCEL External gear pump is available up to 2000 lpm and pressure up to 10 Bar Design: S6"crewed or Flanged, Port Sizes: 0.5"x0.5" to 6"x6", Gear Box Drive, Engine Drive or PTO Drive
Why is a safety pressure relief valve provided in EXCEL External Gear Pumps?
Because an external gear pump is a positive displacement pump, it delivers a fixed volume per revolution regardless of discharge pressure. If a downstream valve is closed, pressure will rapidly build up until the motor stalls, the pump housing ruptures, or piping fails. A pressure relief valve (PRV) on the discharge line or integrated into the pump cover prevents over-pressurization.
What fluids are best suited for EXCEL external gear pumps?
External gear pumps perform exceptionally well with clean, viscous liquids and high-pressure hydraulic applications:
- Ideal fluids: Hydraulic oils, lubricating oils, fuels, polymers, resins, additives, and chemical feedstocks.
- Avoid: Abrasive slurries or fluids containing solid particles, as suspended solids quickly wear down gear teeth and tight tolerances.
What are the key Advantages of EXCEL External Gear Pumps? Advantages
- High pressure capability: Compact design generates steady high discharge pressures.
- Bi-directional operation: Flow direction can be reversed by reversing motor rotation and changing Pump Casing Cover Position.
- Precise metering: Flow rate is directly proportional to rotational speed (RPM).
- Robust construction: Dual-DU Bush support allows for heavy continuous duty.
What are the limitations of EXCEL External Gear Pumps?
- No dry running: Requires fluid for internal lubrication and cooling.
- No solids allowed: Tight internal clearances mean abrasive particles cause fast degradation.
- Noise level: Can be noisy at high RPM (helical gears help reduce noise compared to straight spur gears).
